AS1 PRO

The versatile solution to apply your expertise to all types of milling operations.

Ask for informations

View 3D model

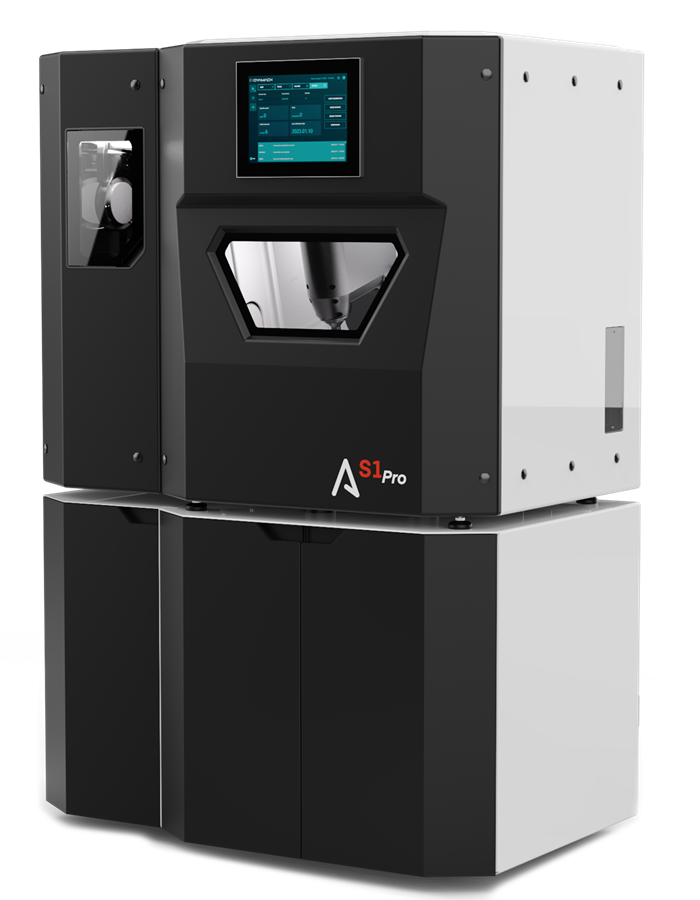

The 5-axis milling machine incorporating original engineering solutions, capable of guaranteeing high performance for all types of material.

AS1 is equipped with a tilting head spindle that allows the use of innovative milling strategies in accordance with the context. Precision and performance of tools are guaranteed also when machining soft and hard metals. The blank holder loading/unloading system, removable tool magazine, and the structure of the numerical control were designed specifically to optimise versatility and speed of execution in your laboratory. Performance over longer working cycles with the automatic 8 disc holder.

Size and weight

120 x 78 x h175 cm / 510 Kg
47.24 x 30.71 x h68.90 inch / 1124.36 lb
Spindle power and speed

1 kW / 60.000 rpm
Machining type

Dry / Wet
Spindle tilt degrees

-92° > 42°
Collet diameter

Ø 3 mm / 4 mm / 6 mm
Ø 0.12 inch / 0.16 inch / 0.24 inch
SLM secondary machining

YES
Automatic calibration

YES
Removable rack-type tool magazine

18 tools
Rapid loading / unloading

Disc holder
8 position automatic loader

Disc holder

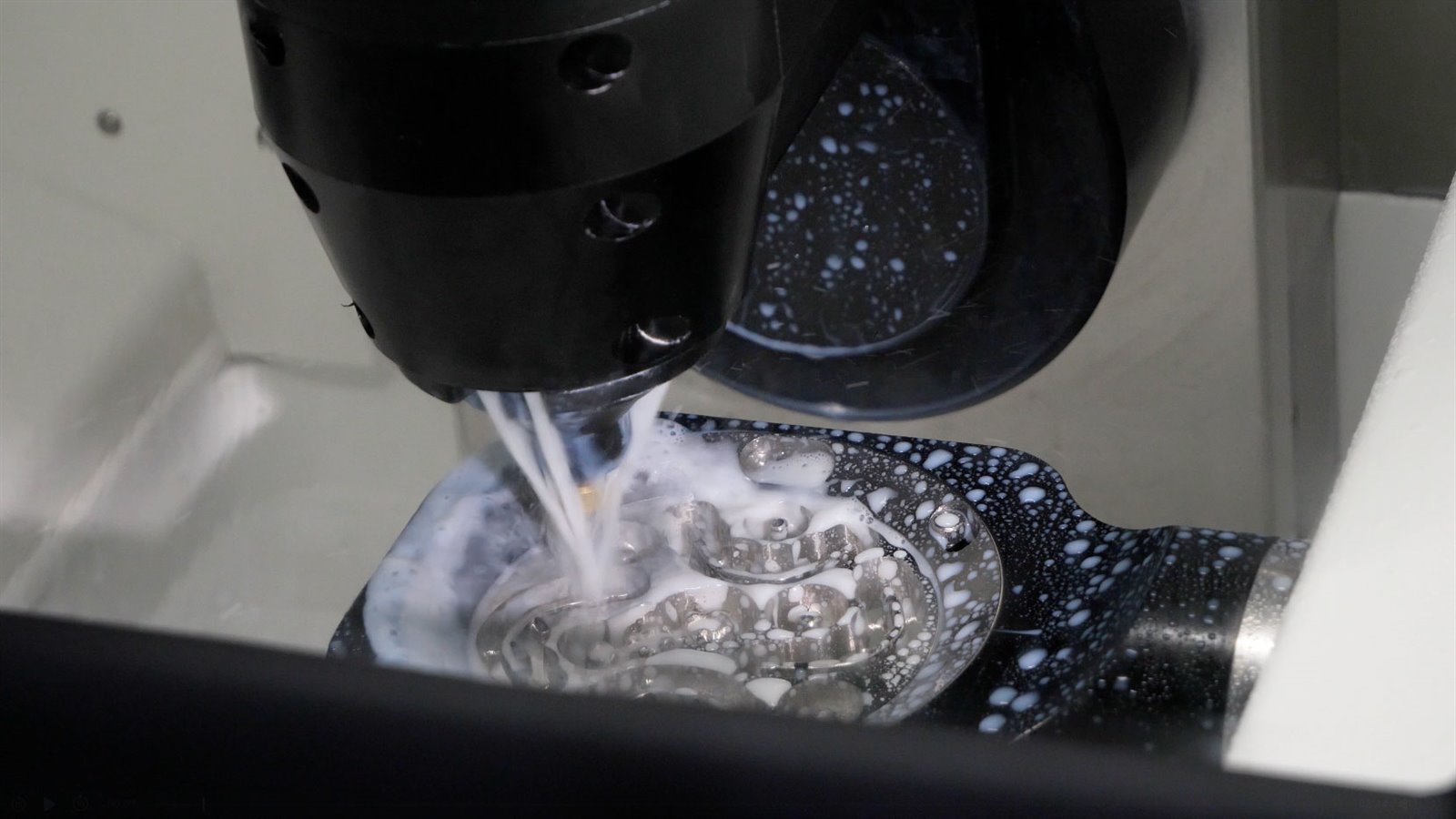

Tilting head milling

Thanks to its characteristics, allows both classic milling and frontal mill/turn operations, offering exceptional precision in all machining processes.

Ease of use

The key characteristic of the AS1 is its straightforward operation: easy loading and maintenance make it among the most versatile machines in the Dyamach range.

Open system

Open system packed with solutions (extreme milling) that allow machining results to be customized based on specific requirements.

SLM secondary machining

Ability to refine products obtained by means of laser additive manufacturing technology.

Mill/Turn

Operating mode that combines workpiece rotation with spindle operation – highly effective in machining pre-milled abutment blanks.

Materials performance

Assured tool lifetime and milling speed, ability to quickly to a vast range of milling requirements.

Activate 3D player

Materials

Processing

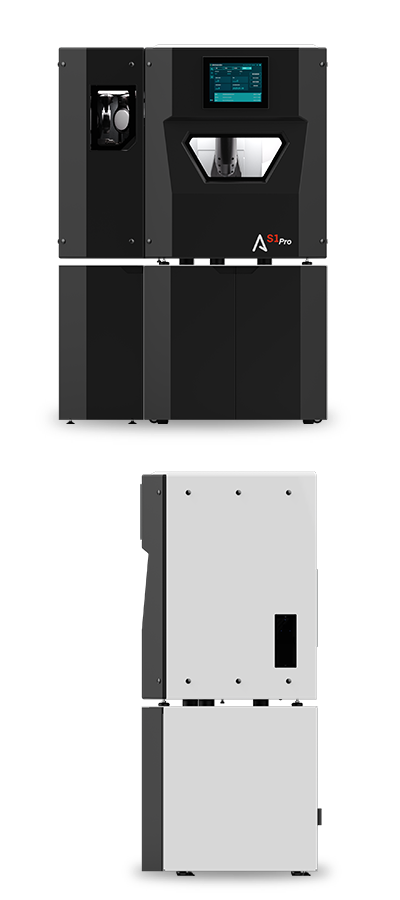

Technical data

Size LxPxH	120 x 78 x h175 cm / 47.24 x 30.71 x h68.90 inch
Weight	510 Kg / 1124.36 lb
Power supply	230V 50/60Hz
Power	1 KW
Rated pressure	6 Bar
Spindle power	1 Kw
Spindle speed	60.000 rpm
Spindle collet	Ø 3 mm – 4 mm – 6 mm / 0.12 inch - 0.16 inch - 0.24 inch
Blank diameter	Ø 98±0.5
Input increment	X,Y,Z=0.001mm A,B=0.001°
Axis repeatability	X,Y,Z=0.005mm A,B=0.005°
