DS1

DS1

Our new compact solution.

Ask for informations

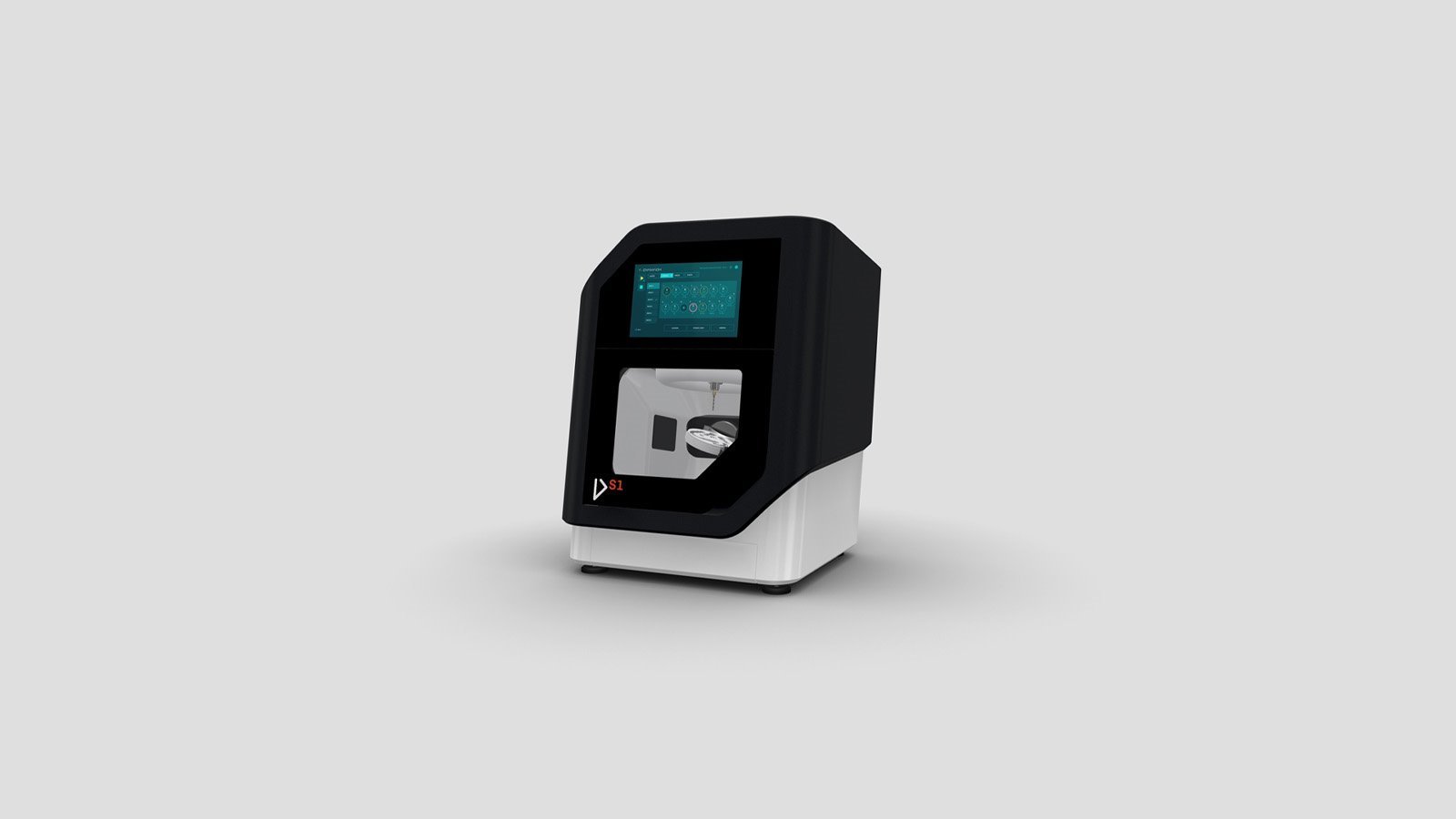

View 3D model

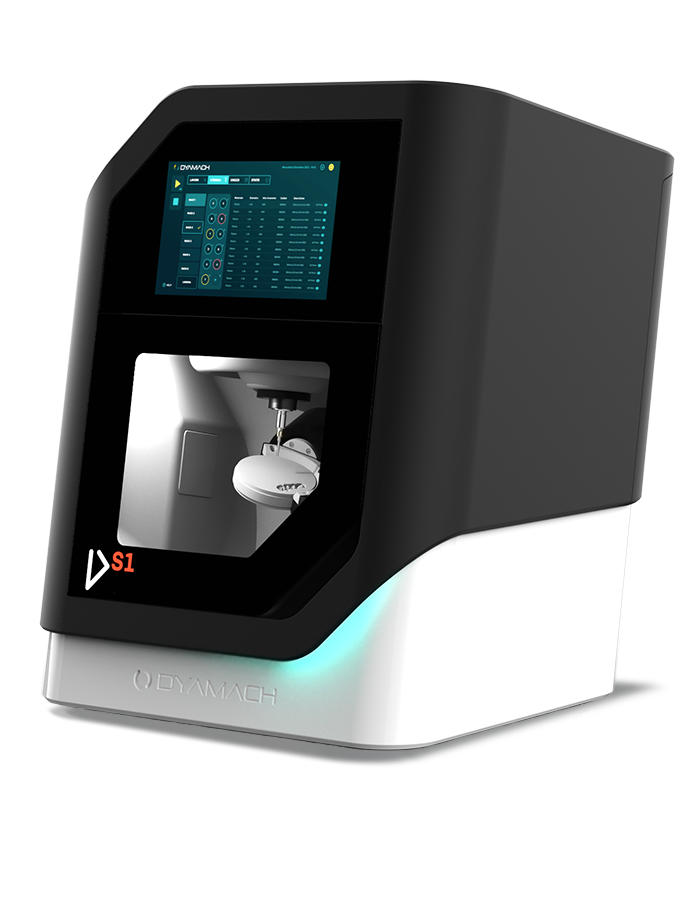

The 5-axis compact milling machine for dry machining processes, ideal for crowns and bridges.

A new design for a standard machine. Agile and precise, characterised by exceptional accessibility. DS1 is our response to the need to make the entire range of soft materials required for the construction of dental prostheses rapidly and with reliable results. The new Dyamach NC greatly simplifies the user experience, thanks to its clear and intuitive structure. The machine features exceptional robustness, a hallmark of all our products that does not affect the aspects of ergonomics and ease of transport.

Size and weight

52 x 54 x h65 cm / 65 Kg
20.47 x 21.26 x h25.59 inch / 143.3 lb.
Spindle power and speed

0.75 kW / 100.000 rpm
Machining type

Dry
Collet diameter

Ø 3 mm / 4 mm
Ø 0.12 inch / 0.16 inch
Automatic calibration

YES
Spindle tilt degrees

A-axis 360°
B-axis -180° /+40°
Removable rack-type tool magazine

14 tools
Rapid loading / unloading

Disc holder

"In search of good design"

The Red Dot Design Award is one of the world’s largest design competitions. The Red Dot Label has become established internationally as one of the most sought-after marks of quality for good design.

Tool lifetime

The system has been optimised in order to reduce vibration, thus maximising tool lifetime and precision in each stage of the process.

New interface

The new graphic interface brings improved usability: clear graphics but also contemporary, functional, intuitive and easy to activate, plus a new online help function to support the operator in every activity.

Ease of use

The key characteristic of the DS1 is its straightforward operation: easy loading and maintenance make it among the most versatile machines in the Dyamach range.

Activate 3D player

Materials

Processing

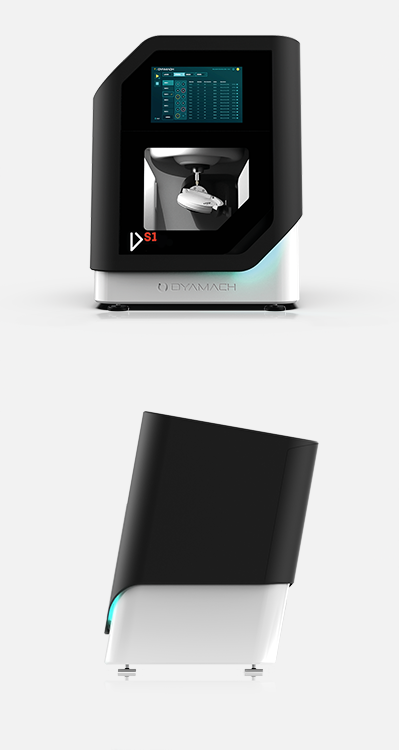

Technical data

Size	52 x 54 x h65 cm / 20.47 x 21.26 x h25.59 inch
Weight	65 Kg / 143.3 lb
Spindle power	0,75 kW
Spindle speed	100.000 rpm
Number of tools	14
Tool shaft	Ø 3 mm - 4 mm / 0.12 inch - 0.16 inch
Rated pressure	6 Bar
Blank diameter	Ø 98±0.5
