DT2

DT2

Our proposal for metal machining processes.

Ask for informations
View 3D model
View 3D model

The stable and powerful 5 axis milling machine that delivers unparalleled performance in the production of titanium and cobalt-chromium elements.

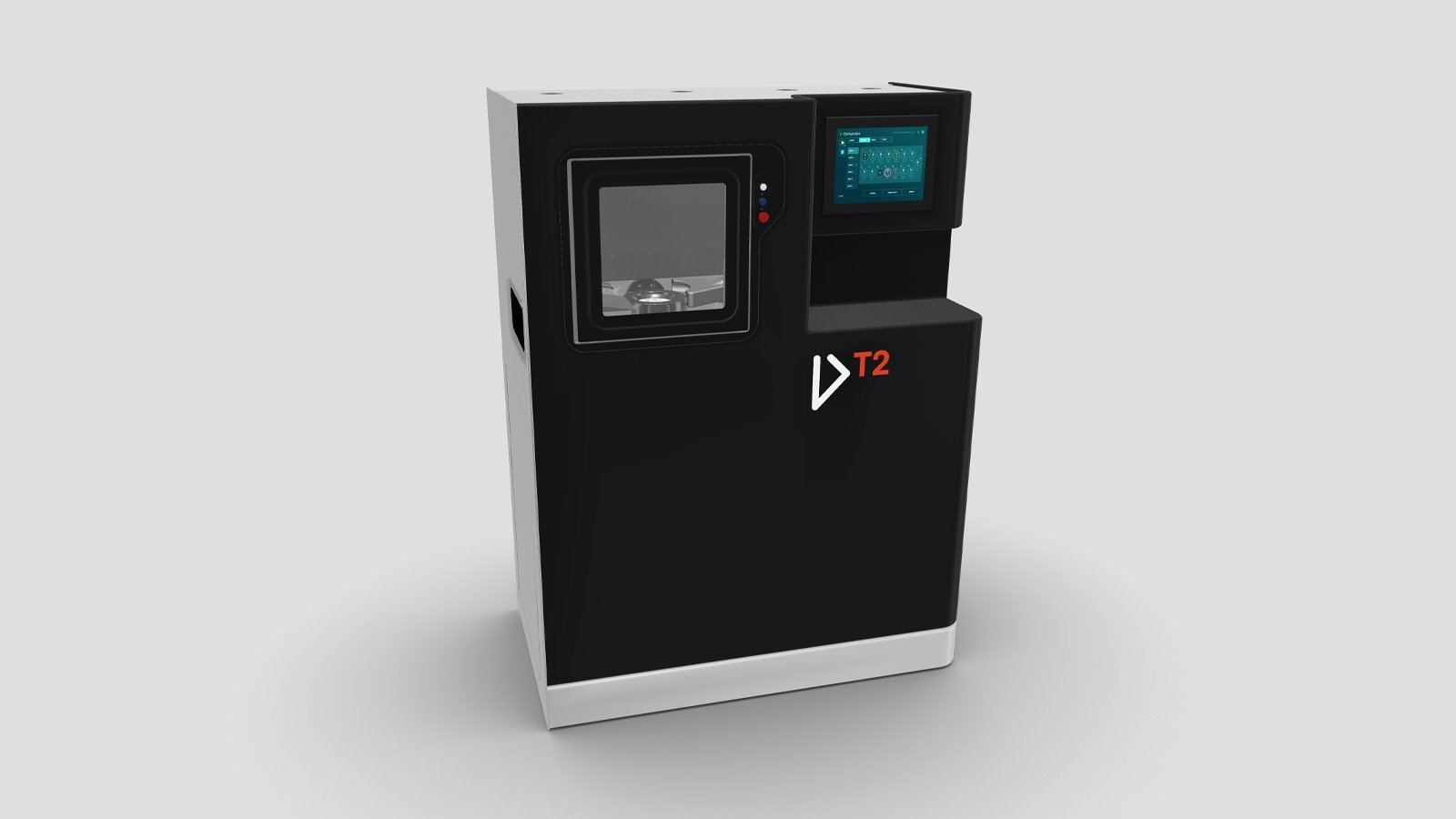

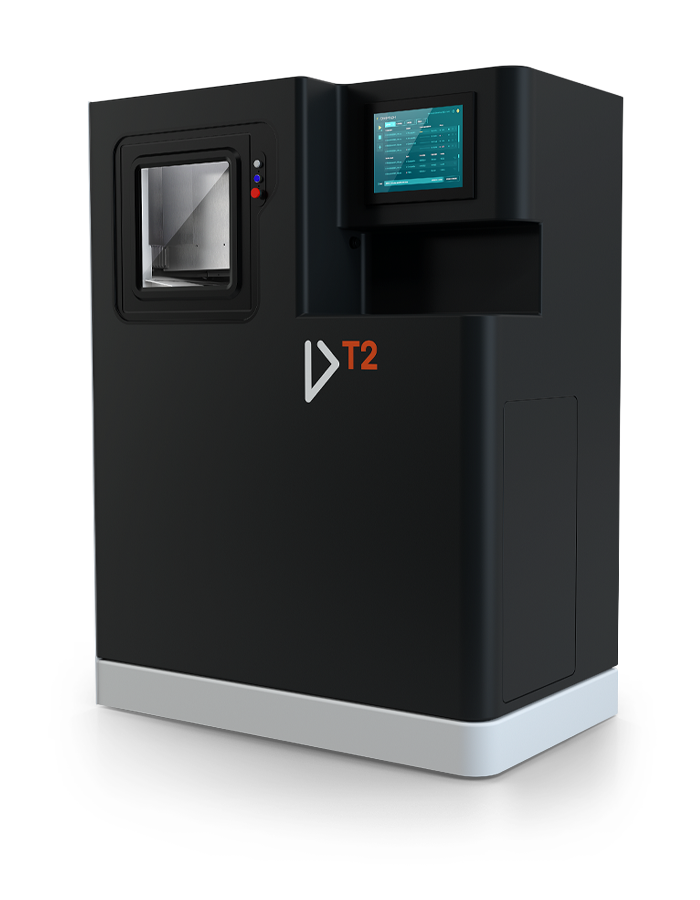

DT2 is our vertical CNC milling machine with 5 continuous axes, powerful and reliable, suitable for milling centres capable of accompanying your business across new frontiers. The system's stability means we can minimise tool wear while maximising the workpiece machining speed. Thanks to the production results of the DT2, safety and quality of execution become a decisive stimulus to drive your laboratory's productivity and profitability.

  • Size and weight
    125 x 70 x h160 cm / 590 Kg
    49.21 x 27.56 x h62.99 inch / 1300.73 lb
  • Spindle power and speed
    2,6 kW / 50.000 rpm
  • Machining type
    Dry / Wet
  • Collet diameter
    Ø 3 mm / 4 mm / 6 mm
    Ø 0.12 inch / 0.16 inch / 0.24 inch
  • Automatic calibration
    YES
  • Rack carousel
    36 tools
intro_macchine(2)
DT2_stabilit(1)

System stability

A highly compact milling chamber, incorporated in a system in which the thickness and mass of the components reduce vibration levels to zero.

DT2_cialda-acciaio

Axes movement

The travel distance of the axes and spindle movement minimise loads on the mechanical elements of the milling machine. The rotary axis allows spindle torque to be fully exploited without affecting system kinematics.

DT2_utensili(0)

Power and tool lifetime

The metal milling speed has no negative effects on the system’s integrity and performance over the long term. Tool lifetime extends to incomparable levels.

Activate 3D player
Activate 3D player
configuratore_preview_DT2
cover_default
Zirconium
Wax Dry / Wet
Pmma Dry / Wet
Peek
Composite
Carbon
Plastic materials
Glass fiber
Glass ceramic
Aluminium
Titanium
Cobalt chrome
Pre-milled Tit / CoCr
cover_default(0)
Anatomical bridges and crown
Bridge and Crown
Bridge and Wax crown
Abutment
Bars and bridges
Pre-milled
Selective laser melting
Glass ceramic
Denture
Partial Prosthesis
Bite
Primary and secondary with screw thread
banner_logo_DT2
DT2_vista-fronte-lato_tabella

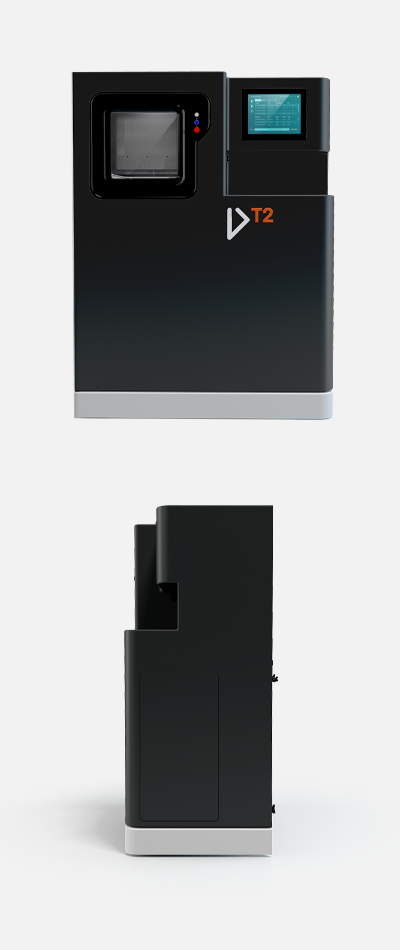

Size 125 x 70 x h160 cm / 49.21 x 27.56 x h62.99 inch
Weight 590 Kg / 1300.73 lb
Power supply 230 V 50/60 Hz
Power 5 kW
Rated pressure  6 bar
Spindle power 2,6 kW
Spindle speed 50.000 rpm
Spindle collet Ø 3 mm - 4 mm - 6 mm / 0.12 inch - 0.16 inch - 0.24 inch
Blank diameter  Ø 98±0.5
Axis travels  X=165 Y=140 Z=110 A=±360 B=+45-225
Axis speed X,Y,Z=4500mm/min A,B=4500°/min
Input increment  X,Y,Z=0.001mm A,B=0.001°
Axis repeatability  X,Y,Z=0.005mm A,B=0.005°
